Online modular integrated model

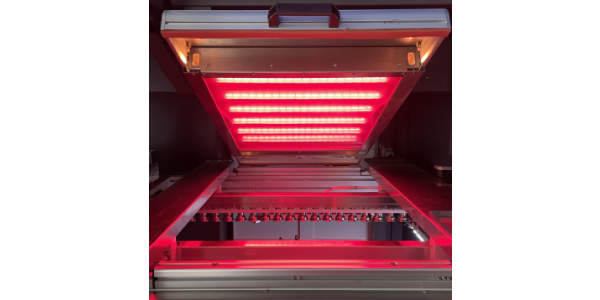

The two equipment are equipped with spray preheating welding function,
It can be divided into two independent lines or combined into one line, with flexible process.
There is no need for fixture welding.
According to the different needs of customers, to achieve the collocation of different modules.
It has high flexibility, high production capacity and lower input cost.
It can be divided into two independent lines or combined into one line, with flexible process.
There is no need for fixture welding.
According to the different needs of customers, to achieve the collocation of different modules.
It has high flexibility, high production capacity and lower input cost.
technical parameters
| Machine Model | SELPOT-400 | |
| Machine Parameters | Dimensions | L1520mm X W1650mm X H1650mm |
| power supply | three-phase five-wire 380V 50HZ | |
| transport parameters | rail adjustable range | 100-400MM |
| PCB size | L450 X W400MM | |
| Transport height | 900±30mm | |

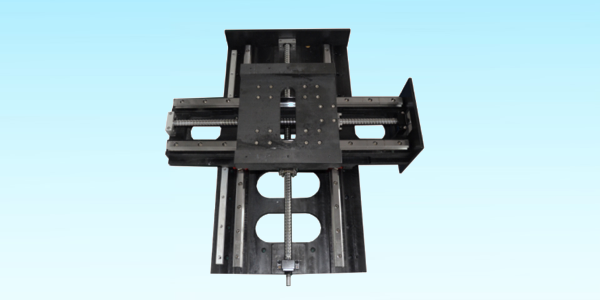

| motion platform | lightweight design | |
| ball screw and Matsusune servo | ||
| motion accuracy | ± 0.05mm | |

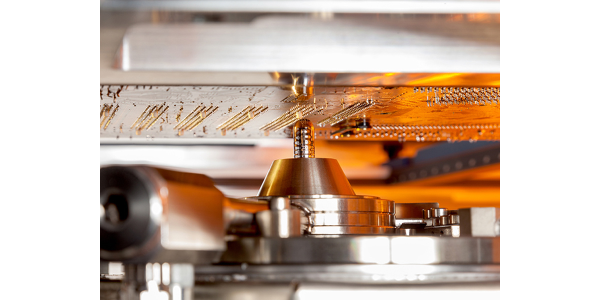

| tin furnace parameters | Crest Drive | Standard mechanical pump/electromagnetic pump optional |
| tin furnace quantity | single cylinder | |
| tin furnace capacity | 13 kg/Furnace | |
| Nitrogen consumption | Each tin cylinder is about 1.5 ~ 2 m 3/h | |
| Programming Mode | online/offline programming; pictures, Gerber files can be; |
